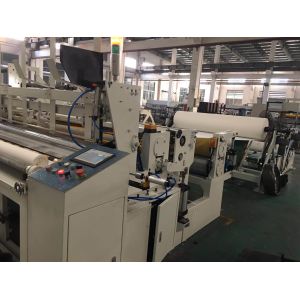

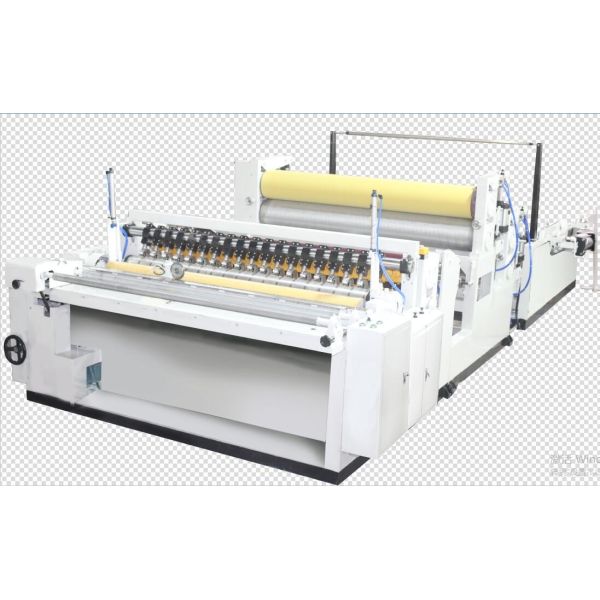

JRT / Kitchen Towel / Toilet Tissue Paper Production Line Siemens PLC With Embossing And Glue Lamination System

Product Categories

Foshan Origin Machinery Co.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

Toilet Tissue/JRT/Kitchen Towel SIEMENS PLC with embossing and glue lamination system , high speed economical price

MZQ-III-E250-2900 High speed toilet paper rewinding machine

MODLE	1575	1760	2200	2500	2800	2900	3000
Max.Jumbo roll width(mm)	1750	2000	2150	2400	2750	2850	2950
Finished product diameter(mm)	Ф60-150
Finished product core inner diameter(mm)	Ф32-50
Jumbo roll diameter(mm)	≤Ф1200(other size should be ordered)
Jumbo roll core inner diameter(mm)	Ф76.2(other size should be ordered)
Perforating size(mm)	110mm(other size should be ordered,4PCS spiral perforating blade)
Machine speed	250m/min
Parameter setting	SIEMENS touch screen
PLC control	SIEMENS PLC
backstand	1-4sets(should be ordered)
Air pressure	0.8Mpa(user supply)
Power	13.5-35Kw,380V,50Hz(base on the model)
Option
Embossing unit	Single,double embossing/steel to steel/steel to rubber/steel to paper(should be ordered)
backstand	1-4 sets(should be ordered)
Transmission	Separating motor driving/timming belt transmission/chain and chain wheel transmission
Core or coreless unit	Should be ordered
Edge embossing unit	Air bag type(should be ordered)
Calendering unit	Steel to steel/steel to rubber(should be ordered)
